Device Details

Device Overview

Name/Version: DRK CCLIVEJOY 1.2
Author: DrKesler
Description: NEW VERSION 1.2 JANUARY 2017

NEW IN VERSION 1.2:
"SMOOTH" PARAMETER ADDED, IN MILISECONDS DEFAULT 400: VERY USEFUL FOR JOYSTICKS AS IT ALLOWS TO REGULATE THE CURVE OF THE LEVER. IN ABLETON, SOMETIMES VERY FAST MOVEMENTS MISSES THE LAST RANGE YOU MAKE SO IT RESTS ON INCORRECT FINAL VALUE.
SO WITH THIS PARAMETER YOU CAN SMOOTH THE TRANSITION BETWEEN VALUES AND ALWAYS FINISH WITH THE REAL LEVER POSITION. THIS ALSO HAS EXPRESSIVE FUNCTION AS YOU VIRTUALLY INCREASE THE LEVER SIZE SO HAVING MORE DETAILED CONTROL.



NEW IN VERSION 1.1:
THIS IS NOT A REPLACEMENT OF VERSION 1. THIS IS DIFFERENT IN SOME ASPECTS, USEFUL FOR DIFFERENT SITUATIONS FOR LIVE PERFORMANCE OR HOME PRODUCING:
- THE UPPER-LEFT BUTTONS ACT AS ONE-BUTTON CONTROLLER= ONE PRESS RISES CONTINUOUSLY STEP BY STEP, ANOTHER PRESS DECREASES IT. YOU CAN SET MINIMUM AND MAXIMUM VALUES (DEFAULT 0-127).
- ALL THE UPPER RIGHT BUTTONS ACT AS MIDI NOTES
- TEXT DESCRIPTION FOR EACH PRESET
- FULL 8 PRESETS WITH DIFFERENT CONTROLLER NUMBERS AND MIDI NOTES EACH, READY FOR COMPLEX LIVE PERFORMANCES (REMEMBER THEY CHANGE WITH BOTH LEVER PRESSES).

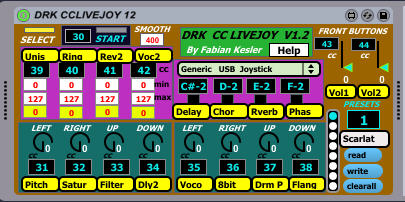

DRK CCLIVEJOY IS A MIDI PLUGIN THAT COMPLETELY MAPS A STANDARD USB ANALOG JOYSTICK.

IT CONVERTS COUPLES OF BUTTONS TO CONTINUOUS CONTROLLERS, ADDING SO MORE ANALOG CONTROL OPTIONS, SIMILAR TO
THE VOLUME CONTROL OF THE TV REMOTE CONTROL.
EACH LEVER HAS A MIDI CONTROLLER (LEFT, RIGHT, UP, DOWN) SO YOU HAVE FOUR CONTROLS PER LEVER.
THE TWO FRONT BUTTON COUPLES ARE CONTINUOUS CONTROLLERS. (ONE BUTTON ADDS AND THE OTHER SUBSTRACTS)
THE FOUR LEFT BUTTONS ARE ASSIGNED TO ON-OFF MIDI SWITCHES.
THE FOUR RIGHT BUTTONS ARE ASSIGNED TO CONFIGURABLE MIDI NOTES. ALL SAVED IN THE PRESETS.
THE "START" BUTTON IS A MIDI CONTROLLER OF "GATE TYPE". IF WORKS JUST WHEN YOU PRESS IT, IDEAL FOR SUDDEN / RHYTMYC CHANGES ON YOUR MUSIC.

THE TWO LEVER PRESSES INCREASE/ DECREASE PRESET NUMBER.
EACH PRESET STORES CONTROLLER NUMBER FOR EACH PART OF THE JOYSTICK (THE CC MIDI NUMBERS CAN BE CHANGED ON EACH BLACK NUMBER FIELD). YOU CAN OPEN, SAVE TO HARD DISK AND CLEAR THE PRESET BANKS WITH THE CORRESPONDING BUTTONS.
STORE INDIVIDUAL PRESET BY SHIFT+CLICK ON EACH BUBBLE.
SO YOU CAN COMPLETELY RECONFIGURE THE MIDI CONTROL NUMBERS WITH EACH PRESET, HAVING SO A LOT OF MIDI CONTROLLERS WITH JUST A CHEAP JOYSTICK

VIDEO V1.0
http://youtu.be/QcMCP2G6QQQ

MORE VIDEOS, HELP, ABLETON TEMPLATE, MAX AND EXE VERSIONS HERE:
http://fabiankesler.blogspot.com.ar/p/max-msp.html
Author: Fabian Kesler - fvkesler@gmail.com


Device Details

Downloads: 229
Tags utility, other, hardware
Live Version Used: 9.6
Max Version Used: 6.1.10
Date Added: Jul 19 2015 07:15:39
Date Last Updated: Jan 22 2017 21:13:31
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: midi_device
URL (optional): http://fabiankesler.blogspot.com.ar/p/max-msp.html
License (more info): AttributionNonCommercial

Device Files

Device File: DRK CCLIVEJOY 12.amxd
