Device Details

Device Overview

Name/Version: mod.del 0.2
Author: klirr2007

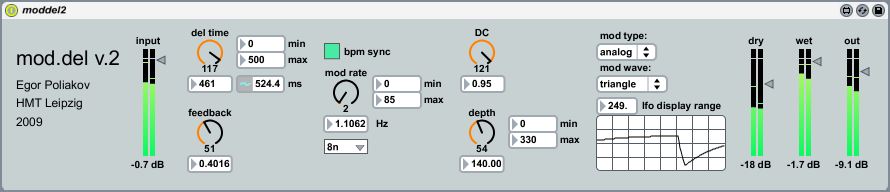

Description: mod.del v.1 - single stereo delay line plugin for max for live with advanced delay time modulation!

You can set own limits for all customizable dials except feedback and duty cycle (both can have values between 0. and 1.).
LFO has 5 waveforms: sinus, triangle, saw, square and noise with 2 different signal modes (precise and analog) and duty cycle adjustment for triangle and square.
What is the difference between precise and analog mode?
In precise mode all the waveforms are geometrically perfect - it means that in case of sawtooth or square (or triangle with DC=0. or 1.) the LFO will spring immediately from lowest to highest value. In some situations it will result in hard clicking - to avoid this I built-in anti-aliased analog-like waveform emulations with max objects "tri~", "saw~" and "rect~".
Visual controlling of the waveform can be done in a small oscilloscope with flexible display range.

All you settings will be 100% saved with your ableton project.

-----------------------

Update v.2

- bpm sync added (very wide range - full tact bpm frequency *128 or /128, n=whole note)
- fixed a bug with sinus wave (frequencies under 1 Hz don't worked properly)
- code improvements


Device Details

Downloads: 2575
Tags lfo, effect
Live Version Used: 8.1
Max Version Used:
Date Added: Dec 25 2009 20:06:43
Date Last Updated: Jan 10 2010 23:31:16
Average Rating (1) 4
Rate this device: (must be logged in to rate devices login)
Device Type: audio_device
URL (optional): http://klirr2007.wordpress.com/
License (more info): Attribution

Device Files

Device File: moddel2.amxd



Comments

Mate, been searching all over the net for a Delay like this, I was looking for somethng that mimics the delay of the old Korg Electribe Sampler ES1! With a bit of me own tweaking i now have it thanks to you! (im ok with max but dont know sht about MSP)

I have also teaked it so the Dealy go's in sinc with Live's BPM,,will post when sorted.

Thanks a bunch for you hard work x
