Device Details

Device Overview

Name/Version: AuDi -audio to midi synth- 1.1
Author: Crampe
Description: Monophonic audio input to Midi audiounit synth. (OSX only)
Put it on an audio track.
Select a synth plug-in from the umenu.
Plug your guitar, bass, voice or whatever is audio.
Play.

Version 1.1:
-You can now choose between au. and vst.
-Knob for analysed audio frequence threshold tweeking.


I've freeze the device but I'm not sure I've did it well.
So, just in case:
You'll need sigmund~ and audiounit~ externals.
For sigmund~ :
http://crca.ucsd.edu/~tapel/software.html
For audiounit~ : http://cycling74.com/forums/topic.php?id=25316


Device Details

Downloads: 6813
Tags synth, effect, other
Live Version Used: 8.1.1
Max Version Used:
Date Added: Mar 23 2010 08:50:27
Date Last Updated: Mar 27 2010 19:18:33
Average Rating (2) 5
Rate this device: (must be logged in to rate devices login)
Device Type: audio_device
URL (optional):
License (more info): None

Device Files

Device File: AuDi 1.1.0.amxd



Comments

Great Idea, Though I can't seem to work it, any details on how to midi out?

Hello.
Its purpose is not to midi out anything.
The monophonic source pitch is converted tp midi note, and then it is sent to the loaded plug-in.
When you load the patch, it should automatically browse your component folder and list your audiounit plug-ins.
Just select a synth in the umenu.
Now if you click the open/close button, your plug-in window should open.
You can now play the synth with your guitar or whatever monophonic source.

as it's on an audio file it only seems to find the FX plugin's

Strange...

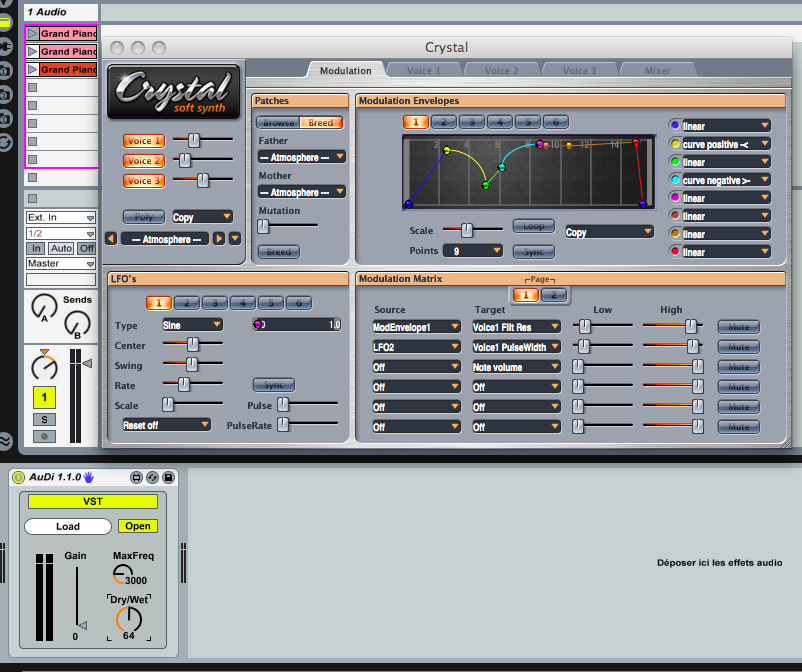

It works for me, I can load all my synths (as you can see on the picture with an example of an instance of Automat loaded).
Have you tried to open the device and refresh the "getplugins"?

Sorry Crampe, tried "Rescan" but it didn't find my AU Plugins at standard location - Macintosh HD/Library/Audio/Plug-Ins/Components
I like the "CV to MIDI" kind of and hope you figure out what could be the problem. Wish you well, John.

The audiounit~ external is in beta, as you can see here http://cycling74.com/forums/topic.php?id=25316
So maybe that's an explanation.
For now you are 2 persons / 37 downloads who have problems. We don't know if it works well for the others.
However, I'll make a version using the vst~ object soon to see if you can get better result. Or maybe you can try by yourself.
Let me know if you do it.


Hi , great device, but where do I put audiounit and sigmund~

Thanks

This is just what i was looking for, please let me know where do I put those external files, if I knew yuo were building this kind of device I could save my money, I just bought Sonuus guitar to midi converter.
It will be great to have something polyphonic though.
Do you think it will be possible?
Thanks in advance.

You have to put the sigmund~ and audiounit~ .mxo files in your Max folder under cycling'74 > msp externals.
But they are supposed to be with the file I've provided (thanks to the freeze function). If you open the device, can't you see the audiounit~ object and the singmund~ one (this last one is the AudioToMidiMono patcher)?
I didn't try the Sonnus, but I've read that it's a great tool with almost no latency... and my patch as a noticeable latency.
Actually I've just made it the day I've post it here and it needs improvement, mostly regarding the pitch detection accuracy.
I'm starting to look at what is possible with polyphonic pitch detection, but I'm a new max user and I have a lot of things to learn.

I've also got the same problem with it only finding the audio FX audio units. Also the open close button doesn't open the edit window, and no signal gets into the audi device. Excited to try this out tho. Thanks

@ crampe

Ok thanks, I have managed to make it work, I can see my audio unit fx and plug in synth, later on I will plug my guitar and try it out.
Yeah man, I don't know f..... all about Max, so don't worry , if you can improve it will be great, take your time, no hurry.
It's not an easy task to achieve ( audio to midi converter) anyway maybe some Max expert can help you out with this.
I'll wait for an upgrade, many thanks again.
I will let you know about latency.

;8 PC?

from tim place (developer) on C74 site:

"
For building standalones...

audiounit~ uses the sqlite database extension to maintain the cache of scanned plug-ins. So you need to include the sqlite extension in your application bundle (look in Cycling '74/extensions).
"

http://cycling74.com/forums/topic.php?id=25316

i presume this means you have to freeze the 'sqlite.mxo', into the 'dependencies' of the device as well for mfl users to get it to work?

just a thought, two cents.

is the sigmund~ only for OSX

very good !!!!!!!!!

any chance of making it more accurate and polyphonic?

could be really usefull using guitar or voice to play synths.

Is it possible to make it just send midi notes to a midi track and then record or play?

has someone managed to run this patch under windows?

Works perfectly for me, in 8.1.3, OSX.

Please help me get it going, i have spent several hours today, and just can't make it work.

Okay so I have max for live installed and working.
I put a microphone on channel one.
I downloaded your AuDi 1.1.0.amxd and dragged it into ableton.
I dragged it to track one.
I downloaded crystal soft synth, tried everything but cannot get it going.
installed dmg file. then it goes to a pkg file, which i installed successfully.
But now i have no idea where the synth is located in order to start it.
However i followed the website's instructions to download and saved additional fxb files under library, app support.. and created folder called Crystal, CrystalPatchBanks and CrystalSoundFonts.. as per instructions..
But never mind the Crystal soft synth, I managed to download another VST synth called Ticky Clav.
(can your program be run within Ableton, or do I have to have a VST synth?)
So anyways I found Tick Synth under my plug in folder, and double clicked it.
But now I don't know what to do, or how to set up the channel to send the mic to midi info to the VST synth.
I set up the channel exactly as your picture.
Can you give me any help?
I opened up your patch in Max and saw that the audio was converting to midi just fine (represented by the keyboard notes appearing)..
So how can I get it to make sounds?
Your help is greatly appreciated..


ok i got it going.
note to noobs.. you have to download a vst instrument to make this work..
Kinda negates the time and expense i've put into tweaking all my delicious patches in Ableton and outboard gear.
Anyways..
Now that it's working.. too bad about the latency.
Otherwise great!

Can anyone tell me how to add a dials to do the following customizations:
1. Octave. To make the device send midi notes that are up or down by a set amount of octaves. Or you could do individual notes I guess.. I'd rather be able to make it in octaves.

2. set range of input and output - to set the lowest and highest note input and the lowest and highest notes output.. Let's say i'm putting a mic on a block of wood, or drum skin.. where your exact pitch tracking will happen in a very small range.. say a half-octave. But say you want it to trigger midi notes that span like.. FIVE octaves.. that would be cool. get it?

3. chance. Could you randomize the pitch selection? Or have degrees of randomness?

4. scale type. also before randomizing, maybe you could select what type of scale tones to choose from. Let's say choice one would be pentatonic.. the other a blues scale, the other the major scale, minor, arabic.. etc..


hi, it loads the vst but it doesn't reakt, i just hear the dry sound of me playing, no vst playing
