Name/Version: Rocket Pilot 1.0.1
Author: IcaroFerre
Description: A simple and clean editor for the Waldorf Rocket synthesizer.

Yeah, there are already many other Rocket editors available however none of them managed to do everything that I needed so I decided to make my own.

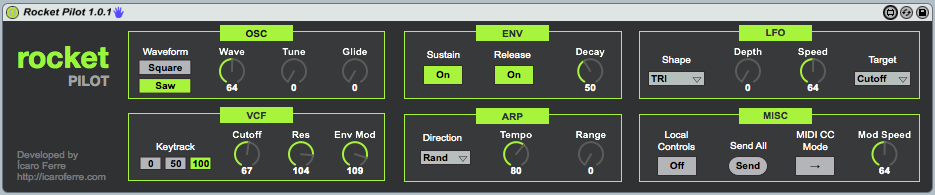

Rocket Pilot is super simple and straight-forward. The layout and design are similar to the actual hardware.
I've also added some options that are only available via MIDI CC such as the Vibrato Mod Speed / Amount.

The Send button is useful for sending the position of all the parameters at once to the synth.

Have fun!

Icaro Ferre



- Added bi-directional MIDI CC communication. This should work without creating MIDI feedback loops regardless if Local Control is turned on or off.
- Removed the Mod Amount knob since it can be easily accessed via a Mod Wheel or a MIDI CC #1 and I needed some room on the GUI for the MIDI CC Mode button.
- Local Control switch now works
- Fixed the color of the sections titles (OSC, VCF and etc). Some elements will still look a lil bit different when using other Ableton themes. I'll deal with those in future updates.

OBS: Keep in mind that, if the MIDI CC Mode is set to Bi-Directional, the hardware controls will still work even if the Local Control is off since the hardware controls will be controlling the M4L device which then controls the synth parameters.
If you want to completely kill the hardware controls make sure to turn off Local Mode and set MIDI CC Mode to Uni-Directional.

- Initial Release

Device Details

Downloads: 744
Tags hardware
Live Version Used: 9.1.5
Max Version Used: 6.1.8
Date Added: Sep 22 2014 15:52:32
Date Last Updated: Sep 23 2014 13:00:09
Average Rating (1) 5
Rate this device: (must be logged in to rate devices login)
Device Type: midi_device
URL (optional):
License (more info): AttributionNoDerivatives

Device Files

Device File: Rocket Pilot 1.0.1.amxd


Hi Icaro, very nice editor. I like the clean look and the additional options like Vibrato Mod Speed. Also finally someone adding a SendAll button - Every editor should have this! This will be my new Rocket editor.

A few minor problems that I noticed:

- The Local Off doesn't seem to work here or I'm doing seomthing wrong. If activated I can still change all parameters on the Rocket itself.

- The other Rocket editor here on works bi-directional if the Session Recording is armed which is quite handy.

- The text color of the sections (OSC, ENV etc.) are white on green when used with a dark skin like 'Disco'. Ok, that one is easy fix :)


@maxdfb Thanks!

Yeah I don't really understand why people don't add a SendAll button to their own editors. It's one of the reasons why I decided to make my own.

So, I added 2 way communication. I didn't add it in the 1.0 version because I was afraid it'd cause a MIDI feedback loop however I found a way to make it work (at least I think so).
Local Control should work 100% now as well.

As in regards to the color of the objects., I don't really fully understand why that happens. Sometimes, even if I manually set all the colors of an object, Max will still change them to match the theme. I'll try to do some research but I guess I'll tackle this problem later.


That was fast. Everything problem I mentioned was fixed and is working perfectly now, including colors. TY!

Hi Icaro. Enjoying this device!

The Waveform indicator seems to be reversed. When I switch to square on the rocket the saw lights up and vice versa.

Can you reproduce this behavior?

I can Not Download.. is the Link Dead?
