Name/Version: HID 6 SLIDERS 15 NOTES 1.0
Author: bilaldeledakrew
Description: This is an easy way to use any gamepad, joystick or else as a midi controler, built to work with everything

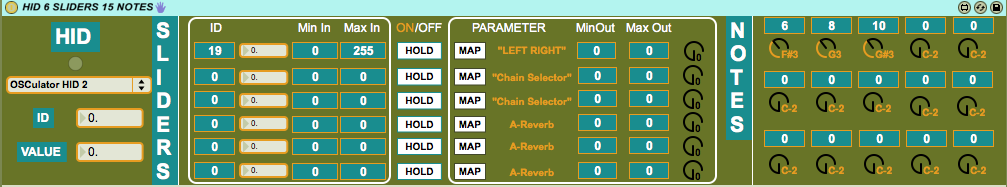

TUTORIAL

- Plug any hardware in your computer
- Open a live project, insert the device in a midi track
- Choose your hardware in left menu

FOR SLIDERS, KNOBS, JOYSTICKS

- Report ID of each button or slider you want to use
- Look at its minimum and maximum data values and report them (you can also choose to use only a specific range of its coarse) on Min in and Max in
- Active the line (ON/OFF) and map the destination parameter by clicking MAP and then the choosen parameter in your live set
- Set the minimum and maximum values of your destination parameter (MinIn/MinOut)

FOR BUTTONS TO TRIGGER NOTES
- Just report ID and choose the note

You can also use a button with a parameter (same way than sliders). In that case, the button will share the MaxOut value when pressed and MinOut when released.

Limitation :
- All settings are saved with live set but you have to choose the harware in the menu each time you re-open your set
- Don't use many devices with the same gamepad/joystick/.., it causes troubleshootings
- If a hardware is added or unplugged, you have to re-open your set to see an updated list of available hardwares

Enjoy and share !
Let me know if it works for you


Device Details

Downloads: 606
Tags effect, utility, dj
Live Version Used: 9.0.2
Max Version Used: 6.1.1
Date Added: Feb 03 2014 13:19:58
Date Last Updated: Feb 10 2014 09:17:03
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: midi_device
URL (optional): https://www.facebook.com/bilal.deledakrew
License (more info): None

Device Files

Device File: BILAL HID 6 SLIDERS 15 NOTES.amxd



Comments

Osculator required, right?

No, i tested it on MACbook pro/live 9/max6 and on PC/live 8.2 and it works

Nice one!
J'esp?re que c'?tait bien le concert avec Zeb et Julien au mediator ;)

Cocorico ! 2 gais lurons ces 2 l?..un plaisir

Hey, this device ist exactly what I need! Thank you so much for creating it and sharing it for free!!!
But unfortunately it doesn't work correctly on my pc (win8 x64). The Problem is: The device gets the right input from my logitech dual action, but setting a C1 on ID54 (for example) does not always work (the knob doesn't light up and the note won't get triggered). I got it to work two times, but then no other button input would route and trigger a midi note... I tried another gamepad but get exactly the same problem. I tried both analog and non-analog mode on the gamepads.
Any idea?

Hey, this device ist exactly what I need! Thank you so much for creating it and sharing it for free!!!
But unfortunately it doesn't work correctly on my pc (win8 x64). The Problem is: The device gets the right input from my logitech dual action, but setting a C1 on ID54 (for example) does not always work (the knob doesn't light up and the note won't get triggered). I got it to work two times, but then no other button input would route and trigger a midi note... I tried another gamepad but get exactly the same problem. I tried both analog and non-analog mode on the gamepads.
Any idea?

Hi, Note Trigger Section is set to trigger note by button sending 1 when pressed and 0 when released.
What values do your buttons send ?

Hi there !
Thanks very much for this ! I am using dancepads and it works really great ! No need for junxion anymore !
One thing i can not do is launching clips. Do you think it is possible ?
