Device Details

Device Overview

Name/Version: Monoglitch 1.0
Author: floszk
Description: Draw glitches (from 2 to 1024 samples) and play them alone or oscillator-like. Monoglitch is a friendly Midi Instrument to introduce noises and grooves into your productions. Shape some cool sounds with Octave, Tape Delay and Reverb effects. Use LFOs to create cuts, larsens and modulations through the main signal.


______________________________________________________

Video about this device:
https://www.youtube.com/watch?v=xJdl3cnAl58
______________________________________________________

For more information please visit : http://m4l.szk.fr/
______________________________________________________


Monoglitch is a Midi Instrument. Put in on any Midi Track.

# Main Options
• Solo / Oscillator : play one glitch at a time or repeat it as an oscillator in function of the incoming Midi note frequency.
• Draw Mode : draw or random. Random will create a new shape at each new Midi note.
• Samples : from 2 to 1024. Set the number of samples used to draw the shape of the glitch.

# Effects
• Octave : from -4 to +4.
• Tape delay time : from 0 to 100 ms.
• Tape Feedback : from 0 to 100%. Take care with the audio volume when using 100% value !
• Reverb : from 0 to 1000 ms.

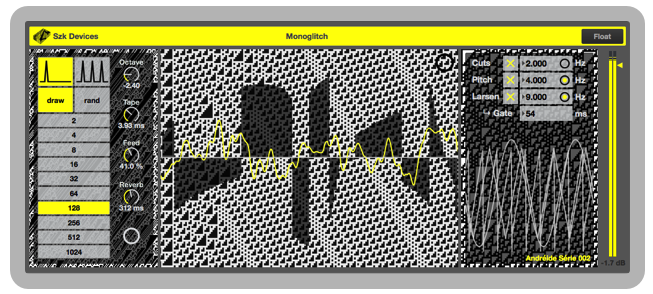

# Draw area
Use the draw area to shape your glitch. Use the right-upper button to reset the drawing. Number of samples available will depend of the selected value on the left menu.
• Black : glitch waveform.
• Gray : glitch monitoring.
• Yellow : signal monitoring during Larsen events.

# LFOs
• Cuts (Sinusoidal signal) : activate/deactivate and select a frequency from 0 to 100 Hz. Frequency of the LFO will control the frequency of cutting through glitches.
• Pitch (Triangular signal): activate/deactivate and select a frequency from 0 to 100 Hz. Frequency of the LFO will control the frequency of random change among possible Octave values. When turned off, value will return to selected one.
• Larsen (Sawtooth signal): activate/deactivate and select a frequency from 0 to 100 Hz. Frequency of the LFO will control the frequency of feedbacks turning temporarly to 100%.
• Gate : from 0 to 1000 ms. This value determines the duration of Larsen events. Please use it carefuly by starting with short values ! The duration value is picked up randomly between 0 and the selected value.




Device Details

Tags synth, lfo, glitch, other
Live Version Used: 9.2
Max Version Used: 7.0.5
Date Added: Oct 22 2015 07:25:09
Date Last Updated: Dec 09 2015 15:57:07
Device Type: instrument_device
Download URL (report link) https://sellfy.com/szkdevices
License (more info): Attribution
