Name/Version: IFS for monome 1.0
Author: nomoremrcoffee
Description: as promised , the monome version of the IFS.


WORKS ONLY WITH MONOME64 & ARC2

IF YOU DON'T OWN A MONOME:
IT CAN BE FED WITH EXTERNAL MIDI,BUT LACKS THE PARAMETER CONTROL.

created by: Aleksandar Koruga

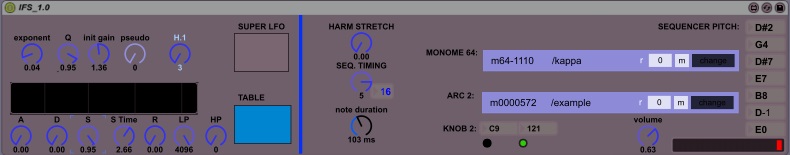

INVERSE FOURIER SYNTHESIZER.
FOR Monome 64 & Arc 2. Max for Live.
Integrated 16 step sequencer and parameter edit for each step/row.

Uses a Leibniz/Geometric series to obtain harmonic data which is passed to the ifft to compute audio signal.

{i use the 0 to 7 rows/columns notation [x,y]=[column,row];left to right, top to bottom}

1.connect m64 & arc2

2.press twice [7 0] (8th button 1st row)

3.select page with [1 0] , [2 0].

4. [0 2] only sequencer mode

5. [0 3] enable edit note pitch using arc: 1st knob row 2nd knob value.press [0 6] to confirm the value.

6. [0 4] enable Parameter mode:

1.select row (pressing one of the

sequencer rows -> row 1 to 7,any

column).

2.select parameter number on the

first arc knob [1-4 ADSR ,5-6

harmonic parameters] , second knob

sets the value.

3.press [0 6] to confirm value.

7. [0 7] enable Delete mode for notes on the sequencer.

1.press once to enable.

2.press the note you wish to eliminate [works even if you

change page with (3.)]

3.press [0 7] again to quit Delete mode.

8. edit any other parameter on the synth (careful with the init.gain and volume).

9.have fun!


Bugs: the sequencer timing dial is a bit tricky.





*Tutorial coming soon.

- built in 16 step sequencer for monome 64 .
- parameter edit for each row with arc 2.

Device Details

Downloads: 697
Tags synth, drum, sequencer, glitch, other
Live Version Used: 9.0.1
Max Version Used: 6.1.0
Date Added: Mar 08 2014 14:50:52
Date Last Updated: Mar 08 2014 19:35:18
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: instrument_device
URL (optional):
License (more info): AttributionNonCommercialNoDerivatives

Device Files

Device File: IFS_1.0.amxd
