Device Details

Device Overview

Name/Version: Strange Attractor Synth 1.0
Author: tmhglnd

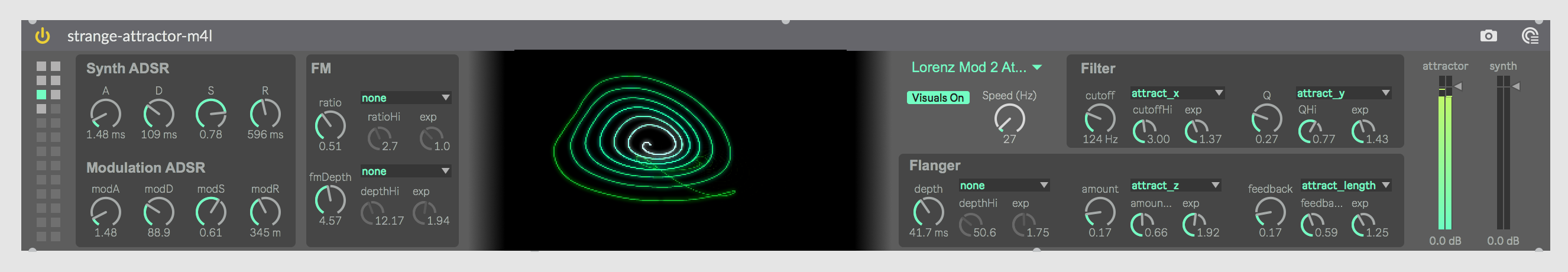

Description: This patch uses the xyz coordinates of a Strange Attractor chaotic system to modulate parameters from an FM synthesizer with resonant lowpass filter and flanger effects. Various different Strange Attractors are programmed in the gen~ patcher with codebox (such as the famous Lorenz Attractor). The attractor can be selected in the umenu and is displayed in the openGL domain using jit.catch~ and jit.gl.path, and also through 4 phase-correlation scopes showing the x-y, y-z, x-z and distance to origin of the signal. Listening to the pure modulation signal is also possible. The coordinates of the attractor are output from the gen~ as a 3-channel signal.

Device Details

Tags synth, lfo, effect, other, push
Live Version Used: 10.0.1
Max Version Used: 8.0.8
Date Added: Aug 31 2019 15:02:18
Date Last Updated: Not updated yet
Device Type: instrument_device
Download URL (report link) https://gum.co/oukoU
License (more info): AttributionNonCommercialShareAlike


Comments

Thank's for sharing this great idea!

Unfortunately, it crashes my Live 10.0.4 on win 7 when I try to load the synth. Could you advise please how I could make it work?

Have a nice flow!
