Device Details

Device Overview

Name/Version: Henonsynth 1.0
Author: floszk

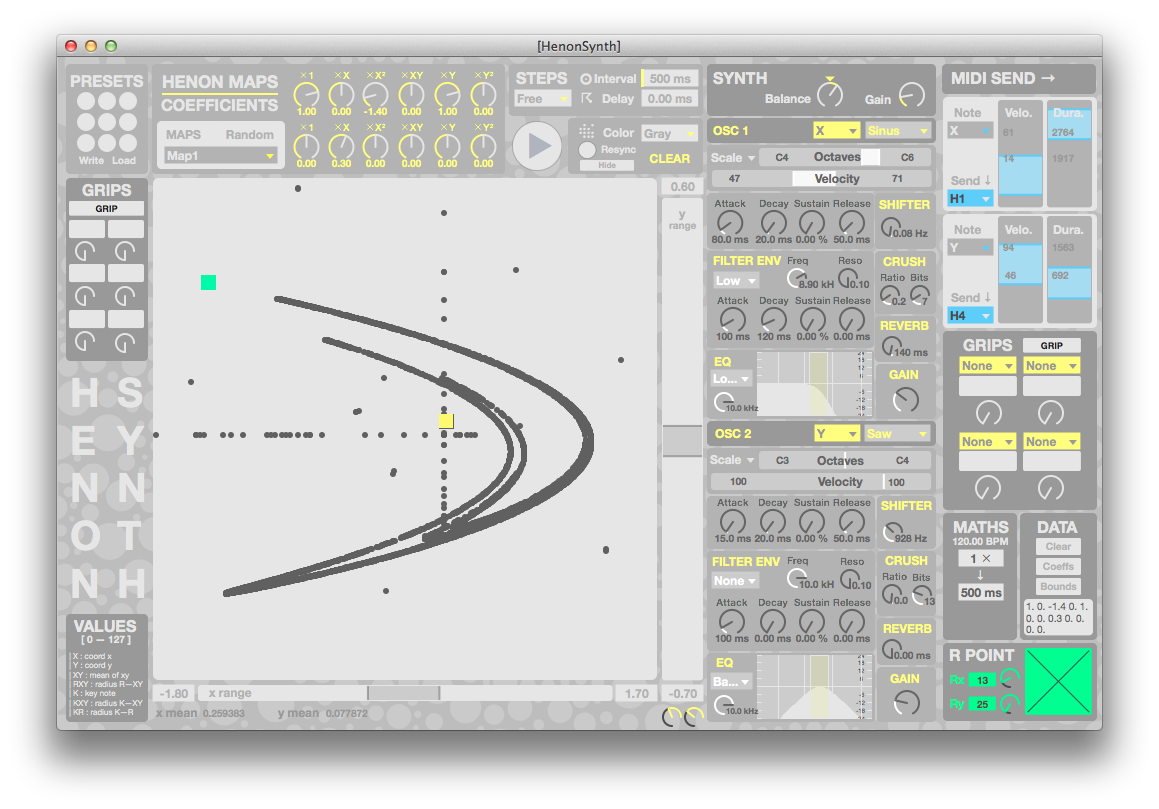

Description: HENONSYNTH is a complex multi-purpose Synth Instrument and Effect/Modulator based on strange attractor's quadratic mapping. The synth’s algorithm generates a quasi-unlimited quantity of strange attractors that allow you to control different modules and to combine them. Three Modules are available : 1# a 2x Oscillators Synthetizer, 2# a MIDI Sender and 3# an Ableton Live API’s Controler. Calculated values from the quadratic system are used to feed these Modules to create a wide range of auto-generated sounds.

QUADRATIC SYSTEM
Coefficients used by the iterative quadratic sytem.

SEQUENCER
A step-sequencer driving the algorithm computation.

GRAPH / MAP
Two-dimensional graph that displays the X and Y values calculated at each step.

FEEDERS MENUS
Menus that allow you to feed the Modules with different computed values.

MODULE #1 | SYNTH
2x Oscillators with ADSR, Filter Env. ADSR, Frequency Shifter, Crusher, Reverb and Equalizer.

MODULE #2 | MIDI SEND
Send MIDI Notes to 2x Outputs.

MODULE #3 | GRIPS
Take control of Ableton Live’s parameters and modulate them. First one (left) is free, second one (right) is controled with computed values.

ADDITIONAL FEATURES
• PRESETS : Write & Load presets file
• MATHS : Calculate the sequencer steps in function of the Live Set’s BPM
• DATA : Get the Map Coefficients and boundaries in simple .txt format
• R POINT : Additional point used in calculations
• VALUES : A simple reminder of the different computed quantities


MIDI RECEIVER
Put this device on any MIDI track and choose the Receiver (according to the Output) to get Note, Velocity and Duration from the HENONSYNTH.

A full documentation file.pdf is included with the device.

______________________________________________________

A video about this device :
https://www.youtube.com/watch?v=vACR8aRfdRE
______________________________________________________

For more information please visit : http://flo.szk.fr/m4l/







Device Details

Tags synth, drum, sequencer, effect, utility, glitch, other
Live Version Used: 9.1.10
Max Version Used: 6.1.10
Date Added: Jul 28 2015 19:01:13
Date Last Updated: Feb 19 2020 17:50:15
Device Type: instrument_device
Download URL (report link) https://gumroad.com/szkdevices
License (more info): Commercial


Comments

looking great ! don't have the cash to buy it right now but will certainly do in some future . Great work.

hi karrrlo,

thank you :)
feel free to contact me at flo [at] szk . fr for any need or suggestion, I'll be glad share with you
