Device Details

Device Overview

Name/Version: Spectrogram 2.0.1
Author: Patrick320

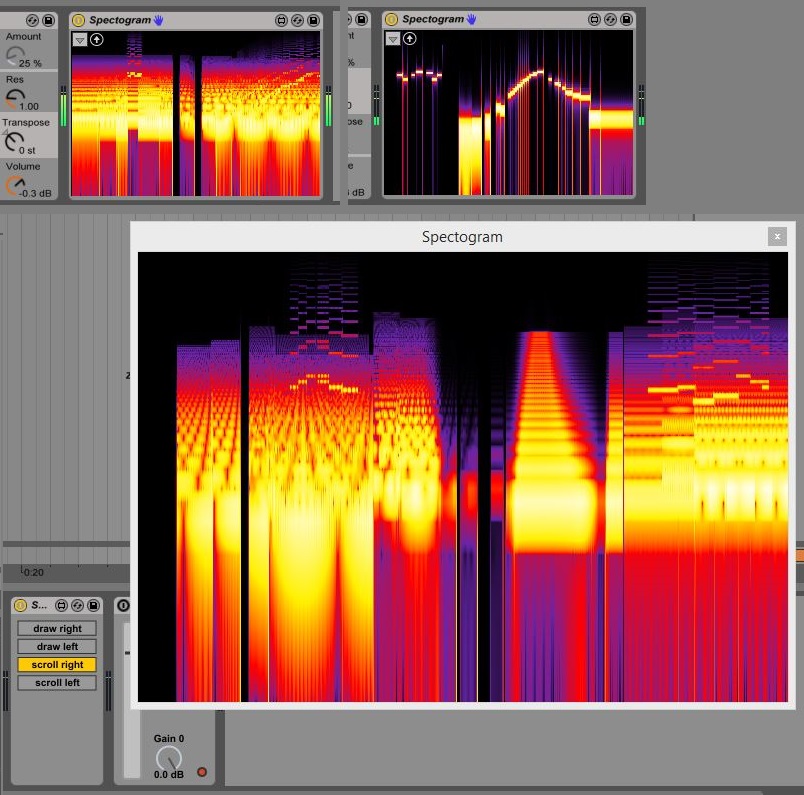

Description: This is a little Spectrogram - now with an external Window.

Device Details

Downloads: 1189
Tags utility
Live Version Used: 9.1.7
Max Version Used: 6.1.9
Date Added: Apr 13 2015 14:11:07
Date Last Updated: Apr 16 2015 14:32:34
Average Rating (1) 5
Rate this device: (must be logged in to rate devices login)
Device Type: audio_device
URL (optional):
License (more info): None

Device Files

Device File: Spectrogram.amxd



Comments

Wow nice and light on the CPU, works in Max7, thanks a lot for sharing this!

Sorry for 2 posts should always to fast to click submit...
Would be nice if the scroll would stop with the transport so it doesn't get overwritten, and if you could save as picture. Of course you could probably add 1000 more things but those 2 things would be really nice to have.

Cheers!

God I totally missed that it stops when choosing the draw option and screening it is absolutely fine in that case, my bad xD

No problem, I don't like it that the drawing or scrolling can't be paused though. It would be great if it's only drawn, when you play a midi note, but this element can only be programmed in given ways. Snapshot also isn't a default option, I guess thesse things can only be implemented by writing special code by a real programmer.

But it's something...

Finally logarithmic spectrogram! How about adding frequency axis?

I recently looked for a frequency-axis option, but there is none. Maybe someone can create a patch for it.

I have seen that inside new reaper appears spectral editing (smooth, blur, sharpen and other) of selected zones of the spectrogram. Is it theoretically possible to make this opportunities by m4l functionality?

Cool. It would be a nice feature being able to select the frequency range all the way up to 96 KHz, so you can see if there's anything interesting hiding in 192 KHz recording :)
