Device Details
Device Overview
Name/Version: | acoustics - room modes finder m8r 1.1 | |
Author: | schoolofsound | |

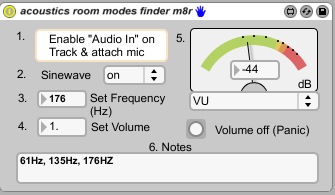

Description: | acoustics - room modes finder m8r - helps you to find and identify exact frequencies of standing waves / room modes in your studio room - by ear and VU Meter. It is especially useful for bass / low frequencies. 1. Enable audio in on your track 2. Attach a measurement microphone (normal mics will do for test purposes) 3. Set sinewave to ON 4. Change the volume if necessary 5. Change the model of the VU Meter if necessary 6. Shift through the frequency up from 1 to 20k -> you hear loud peaks where the room modes / standing waves are. Note any peaks you find temporarily in the Notes field. For my studio, I have identified three standing waves which I will have to correct now: 61Hz, 135Hz, 176Hz. That's it. |
Device Details
Tags | utility, other |
Live Version Used: | 9.0.6 |
Max Version Used: | 6.1.4 |
Date Added: | Dec 01 2013 11:16:43 |
Date Last Updated: | Dec 01 2013 12:01:21 |
Device Type: | audio_device |
Download URL (report link) | http://www.audiodoktor.ch/?p=3448 |
License (more info): | AttributionShareAlike |
